Cummins Diesel Generator

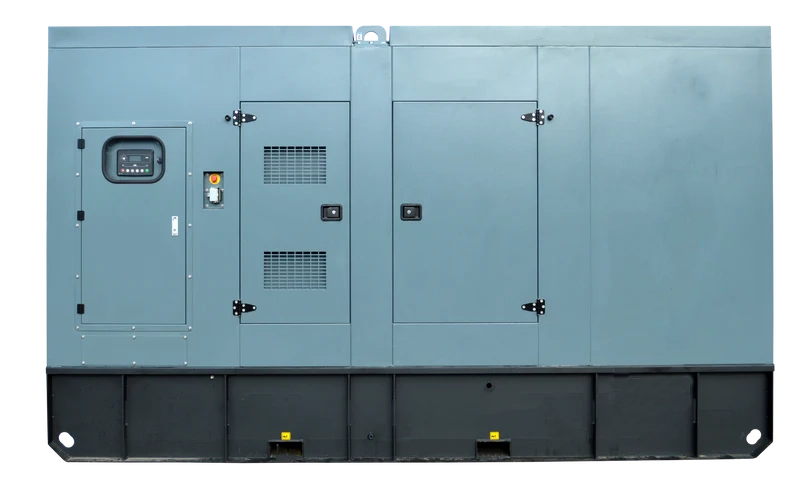

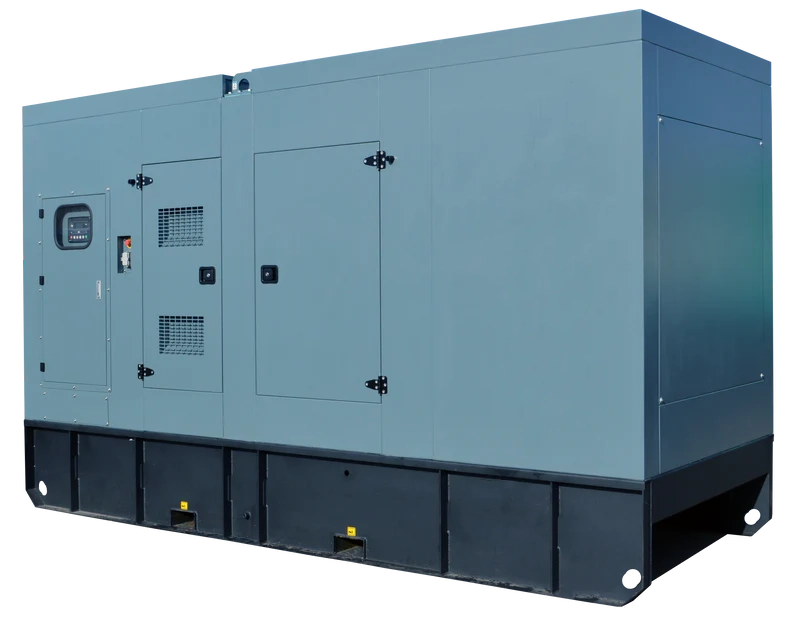

Cummins 650kVA Diesel Generator - GFE715CSC
Discover the epitome of reliability with GFE Power Products' distinctive Cummins-powered diesel generators, incorporating the renowned Cummins engine and Stamford alternator. Engineered for durability and priced competitively, our GFE Cummins Powered generators range from 20kVA to 650kVA.
| Model reference | GFE715CSC (Canopied) |
| Engine | Cummins QSK19-G4 |
| Alternator | Stamford |
| Control panel | Deepsea DSE6120 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 520 | 650 |
| Standby Power (ERP) | 572 | 715 |
| Voltage | 400V |
| Rated current | Amps |
| Fuel consumption | @100% load L/h 145 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Canopied | 4800 x 2022 x 2530 | 7000 | 1000 |
Datasheets
| Generator: | Engine: | Alternator: |
| 650kVA GFE715CSC | Cummins QSK19-G4 | Stamford S5L1D-F4 |
 |
|
|
